Cross Section Diameter (mm): 5.33
Inside Diameter (mm): 56.52
SAE AS568 Dash Size: -331
Hardness (Shore A): 75
Outside Diameter (mm): 2.64
Color: Light Blue
Material: FKM (75),FKM - Fluoroelastomer,FKM
Material Description: FKM rubber is capable of service temperatures of -40 to 150C and is resistant to air, fuel (including bio-diesel), lubricants and oils. FKM rubber should not be used in applications that require resistance to water or coolant.
Coating: PTFE coating protects the O-Ring from installation damage and provides ease of assembly.

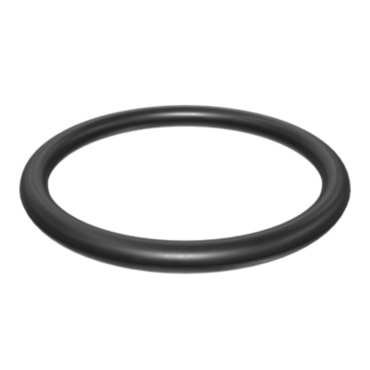

Color Notes: Actual o-ring color may differ from image.
Notes: Dimensions and material descriptions provided for reference only.
Applications: High temperature applications requiring resistance to air, fuels, lubricants and hydraulic fluids
Not Compatible With: Amines; Brake fluids; Engine Coolant; Fire Resistant Fluids; Ketones; Steam; Water
Temperature (°C): -40 - 175
Compatible With: Diester lubricants; Halogenated hydrocarbons (above 100 Deg. C); Highly resistant to compression set; Petroleum fluids; Phosphate ester fluids; Silicone fluids; Some acids
Seal Inside Diameter (mm): 56.52
Seal/O-Ring Type: Standard
Primary Sealing Material: Rubber
