Type: 12 Point Head Bolt
Material: STEEL
Bolt Length (mm): 215.9
Bolt Type: 12 Point
Material Description: SAE J429 Grade 8. Head Marking - 6 radial lines (150 ksi Ultimate Tensile Strength)
Coating: Oil with Corrosion Inhibitor
Grip Length (mm): 152.4
Thread: Fine
Head Height (mm): 19.05
Thread Size (mm): .750
Grade: 8
Hole Thread Pitch: 16
Overall Length (mm): 215.9

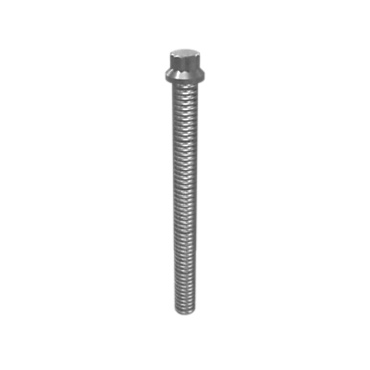

124-1854: 3/4''-16 x 8 1/2'' 12-Point Head Bolt
Part Number: CTP-HBKIT-C27 | Engine: C27 | Descrition: BOLT-12 POINT HEAD | Specifications: 3/4 - 16 X 8.5 - IN. | QTY.: 20
