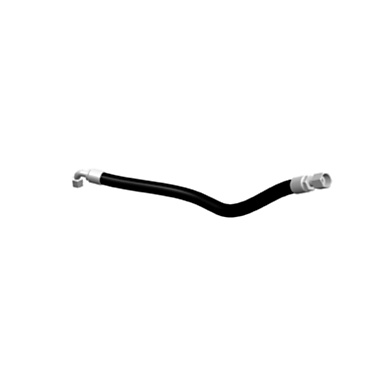

146-9036: Hose Assembly

Hose: 100R2-8 | Hose Size ID Inch: 1/2 | Din Dash Size: 12.0 | Max. Working Pressure Psi: 4000 | Max. Working Pressure MPa: 27.6 | Min. Bend Radius Inch: 7.0 | Min. Bend Radius Mm: 178 | WIRE: Double Wire Braid | APPLICATIONS: For medium pressure hydraulic oil lines used in mobile, machine tool and agricultural applications where higher temperature petrolium or water based hydraulic fluids are a factor | SIZE: 1/4 in - 2 in | PRESSURE: 5000 - 1200
