Length (mm): 565.7
Width (mm): 125.8
Height (mm): 89.8
Bore Diameter (mm): 76.2
Rod Diameter (mm): 38.1
Port Type: CAP END
Strokes: 262
Working Pressure (psi): 3045.8
Approx. Weight (kg): 16.34

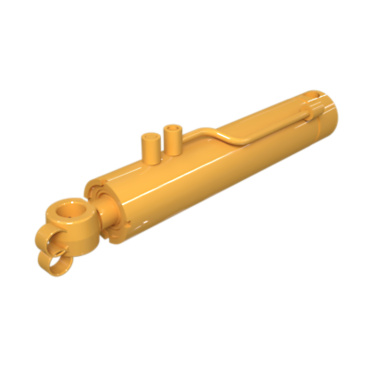

185-1839: Multipurpose Bucket Cylinder
Application: 906M, 908H, 420D/H | Cylinder As Part No.: 9T4009 | Seal kit: 2350354
