Bolt Length (mm): 82.55
Bolt Type: Hex Head
Coating: Zinc Phosphate + Oil offers corrosion protection up to the point of assembly (recommend painting for external applications). Salt spray resistance of 72 hours to red rust. Coating color - dark grey to black.
Grip Length (mm): 25.4
Material: Steel
Thread: Coarse
Material Description: SAE J429 Grade 8. Head Marking - 6 radial lines (150 ksi Ultimate Tensile Strength)
Head Height (mm): 17.4625
Thread Size (mm): 1.000
Hole Thread Pitch: 8
Drive (mm): 38.1
Finish: Phosphate and Oil Coated
Grade: 8
Overall Length (mm): 82.55

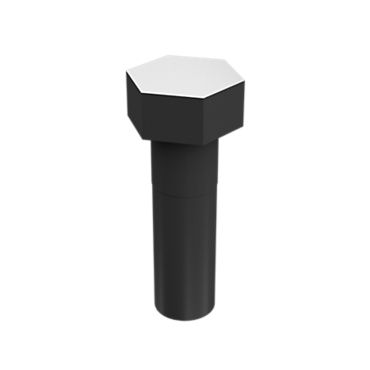

1D-4637: 1 -8 Threaded Sidecutter Bolt
Part No - RIGHT HAND: 2568690 | Part No - LEFT HAND: 2568691 | NUT: 2J3507 | WASHER: 3K5234 | APPLICATION: 330D L, 345C, 345D, 345D L, 349E L VG, 365B, 365B II, 365C, 374D L, 385B, 385C, 385C L, 390D, 390D L
