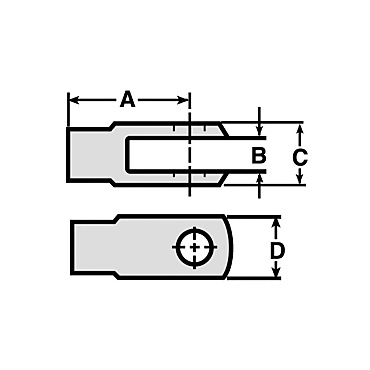

Height - C (in): 28.60
Rod End Type: Yoke-Type
Length to Pin Hole - A (in): 46.0
Rod Diameter (in): 1/2
Width - D (in): 23.90
Gap Size - B (in): 14.30
Retaining Pin (in): 6S-6646
2M-8340: Yoke-Type Rod End
Description: ROD END | Application: 117, 118, 120B, 12E, 140B, 153, 163, 172, 184, 191, 515, 525, 525B, 535B, 545, 561B, 561C, 561D, 571G, 572G, 583K, 594, 594H, 621B, 623B, 769, 824, 824B, 826B, 834, 931B, 931C, 931C II, 933, 939, 943
