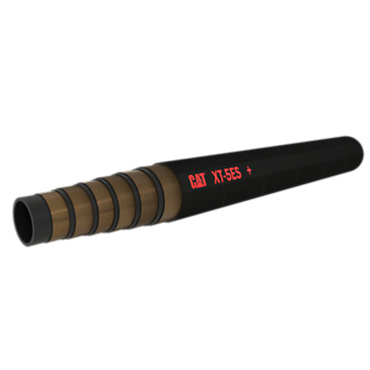

4I-1083: XT-5ES HOSE

Hose: 100R13-16 | Hose Size ID Inch: 1 | Hose Size ID Mm: 25 | Max. Working Pressure Psi: 5100 | Max. Working Pressure MPa: 35 | Min. Bend Radius Inch: 11.8 | Min. Bend Radius Mm.: 300 | WIRE: 4 Layer Spiral | APPLICATIONS: For very high pressure applications and high impulse hydraulic oil, vegetable oil,  poly glycol oil. For construction equipement, mining and the high- performance industrial market. | SIZE: 3/4 in - 1-1/2 in | PRESSURE: 600 - 4500
