Material Description: Steel
Height - C (mm): 12.7
Length to Pin Hole - A (mm): 34.9
Rod End Diameter - B (mm): 28.7
Rod End Type: Spherical
Thread Length (mm): 17.5
Bore Diameter (mm): 9.525
Notes: Pivot Angle: 16°

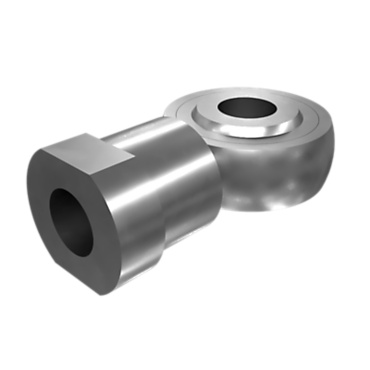

4M-0495: Rod End-Spherical
Description: ROD END | Application: 120G, 12G, 130G, 140G, 14G, 160G, 16G, 518, 518C, 528, 528B, 530B, 561C, 561D, 571G, 583K, 768B, 769, 773, 815, 816, 950, 955H, 955L, 966C, 977H, 977L, 980, 980B, 980C, 988, 992, D4D, D5, D7F, D7G, D8.
