Rod End Type: Spherical
Thread Size (mm): .312
Material Description: steel spherical rod end
Width (mm): 11.1
Notes: Eye Diameter: 6.35, Pivot Angle : 16, Thread Type: Internal Thd, Hand of Thread: RH
Hole Thread Pitch: 24
Length (mm): 35

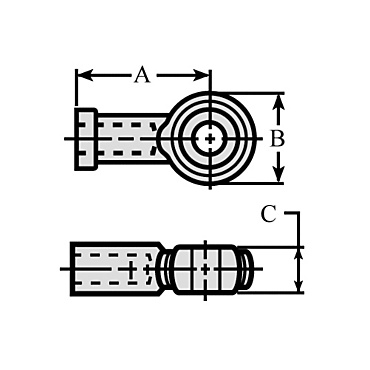

7L-4186: Spherical Rod End
Description: ROD END | Application: 3208, 3304, 3304B, 3306, 3306B, 3406, 3406B, 3406C, 3408, 3408C, 3412, 3412C, 611, 613C, 613C II, 613G, 615C, D343, D346, D348, D349, D353C, D379, D379A, D379B, D398, D399, G3306, G3408, G379, G398
