Bolt Length (mm): 60
Bolt Type: Hex Head
Coating: Zinc Phosphate + Oil offers corrosion protection up to the point of assembly (recommend painting for external applications). Salt spray resistance of 72 hours to red rust. Coating color - dark grey to black.
Grip Length (mm): 9
Thread: Coarse
Head Height (mm): 15.44
Thread Size (mm): M24
Grade: 10.9
Material Description: ISO 898-1 Class 10.9
Hole Thread Pitch: 3.00
Overall Length (mm): 60
Drive (mm): 36

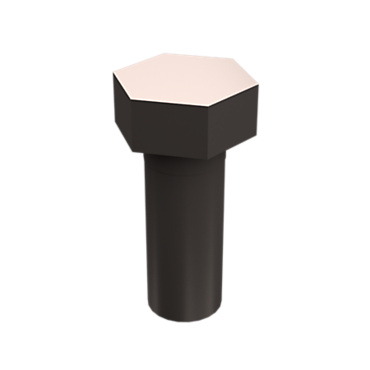

8T-0380: M24 Hexagonal Head Bolt
Part No - RIGHT HAND: 964748 | Part No - LEFT HAND: 964747 | NUT: 7X0851 | APPLICATION: 315B, 315C, 315D L, 316E L, 318D L, 318D2 L, 320B, 320C, 320D, 320D GC, 320D L, 320D LRR, 320D RR, 320D2 GC, 320E, 320E RR, 321D LCR, 322B L, 322C, 323D L, 323D LN, 324D, 324D L, 324E, 325, 325 L
