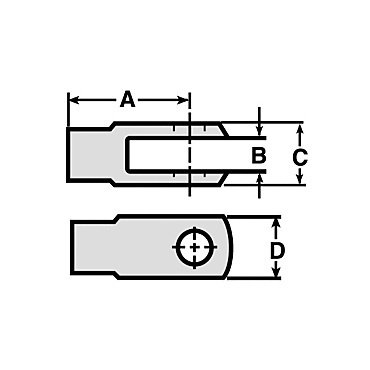

Gap Size - B (mm): 10.0
Retaining Clip: 9R-2807
Rod End Type: Yoke type
Height - C (mm): 20.0
Thread Size (mm): M10
Pins: 8T-4743
Length to Pin Hole - A (mm): 40.0
Rod Diameter (mm): M10
Width - D (mm): 20.0
Material Description: Steel
Length (mm): 52
8T-4815: M10X1.5" Internal Threaded Yoke Rod End
Description: ROD END | Application: 414E, 416, 416B, 416C, 416D, 416E, 416F, 420D, 420E, 420F, 422E, 422F, 424B, 424B HD, 424D, 426, 426B, 426C, 428, 428B, 428C, 428D, 428E, 428F, 430D, 430E, 430F, 432D, 432E, 434E, 434F, 436B, 436C
