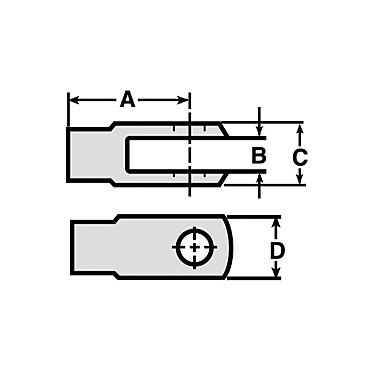

Gap Size - B (mm): 10.0
Retaining Clip: 9R-2807
Rod End Type: Yoke type
Height - C (mm): 20.0
Thread Size (mm): M10
Pins: 9T-5381
Width - D (mm): 20.0
Length to Pin Hole - A (mm): 60.0
Rod Diameter (mm): M10
Material Description: Steel
Length (mm): 72
8T-5063: Rod End-Yoke Type
Description: ROD END | Application: 414E, 416, 416B, 416C, 416D, 416E, 420D, 420E, 422E, 424B, 424B HD, 424D, 426, 426B, 426C, 428, 428B, 428C, 428D, 430D, 430E, 432D, 436, 436B, 436C, 438B, 438C, 442D, 446, 446B, 446D, 450E, 450F, 554
