100R4 Hose assembly

  • 100R1 Hose Assembly
  • 100R12 4 Hose Assembly
  • 100R13 Hose Assembly
  • 100R15 Hose Assembly
  • 100R2 Hose Assembly
  • 100R4 Hose assembly
  • 100R5 Hose Assembly

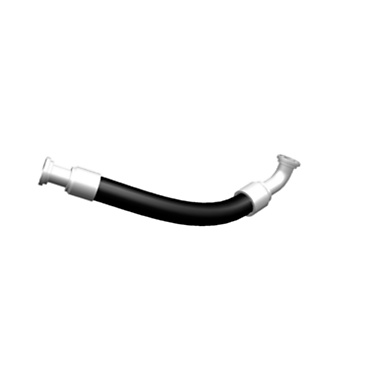

6Y-4063: HOSE A
Hose: 100R4-24 | Hose Size ID Inch: 1 1/2 | Hose Size ID Mm: 38.1 | Max. Working Pressure Psi: 150 | Max. Working Pressure MPa: 1.0 | Min. Bend Radius Inch: 5 | Min. Bend Radius Mm.: 127 | WIRE: Textile with Helical | APPLICATIONS: For low pressure, high temperature return line or suction line for petrolium, oils and water based hydraulic fluids. Vaccume rating 25 in Hg. | SIZE: 3/4 in - 4 in | PRESSURE: 300 - 35

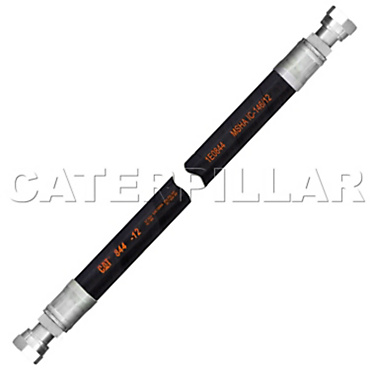

3P-5931: HOSE A
Hose: 100R4-20 | Hose Size ID Inch: 1 1/4 | Hose Size ID Mm: 31.8 | Max. Working Pressure Psi: 200 | Max. Working Pressure MPa: 1.4 | Min. Bend Radius Inch: 4 | Min. Bend Radius Mm.: 102 | WIRE: Textile with Helical | APPLICATIONS: For low pressure, high temperature return line or suction line for petrolium, oils and water based hydraulic fluids. Vaccume rating 25 in Hg. | SIZE: 3/4 in - 4 in | PRESSURE: 300 - 35
6Y-2549: HOSE A
Hose: 100R4-16 | Hose Size ID Inch: 1 | Hose Size ID Mm: 25.4 | Max. Working Pressure Psi: 250 | Max. Working Pressure MPa: 1.7 | Min. Bend Radius Inch: 3 | Min. Bend Radius Mm.: 76 | WIRE: Textile with Helical | APPLICATIONS: For low pressure, high temperature return line or suction line for petrolium, oils and water based hydraulic fluids. Vaccume rating 25 in Hg. | SIZE: 3/4 in - 4 in | PRESSURE: 300 - 35
137-3360: HOSE A 1E844
Hose: 100R4-16 | Hose Size ID Inch: 1 | Hose Size ID Mm: 25.4 | Max. Working Pressure Psi: 250 | Max. Working Pressure MPa: 1.7 | Min. Bend Radius Inch: 3 | Min. Bend Radius Mm.: 76 | WIRE: Textile with Helical | APPLICATIONS: For low pressure, high temperature return line or suction line for petrolium, oils and water based hydraulic fluids. Vaccume rating 25 in Hg. | SIZE: 3/4 in - 4 in | PRESSURE: 300 - 35

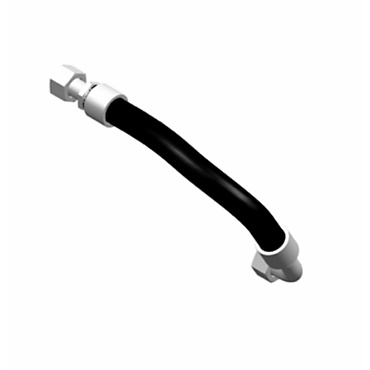

115-8440: HOSE A
Hose: 100R4-16 | Hose Size ID Inch: 1 | Hose Size ID Mm: 25.4 | Max. Working Pressure Psi: 250 | Max. Working Pressure MPa: 1.7 | Min. Bend Radius Inch: 3 | Min. Bend Radius Mm.: 76 | WIRE: Textile with Helical | APPLICATIONS: For low pressure, high temperature return line or suction line for petrolium, oils and water based hydraulic fluids. Vaccume rating 25 in Hg. | SIZE: 3/4 in - 4 in | PRESSURE: 300 - 35
6P-0685: HOSE A
Hose: 100R4-32 | Hose Size ID Inch: 2 | Hose Size ID Mm: 50.8 | Max. Working Pressure Psi: 100 | Max. Working Pressure MPa: 0.7 | Min. Bend Radius Inch: 6 | Min. Bend Radius Mm.: 152 | WIRE: Textile with Helical | APPLICATIONS: For low pressure, high temperature return line or suction line for petrolium, oils and water based hydraulic fluids. Vaccume rating 25 in Hg. | SIZE: 3/4 in - 4 in | PRESSURE: 300 - 35
3P-7170: HOSE A
Hose: 100R4-32 | Hose Size ID Inch: 2 | Hose Size ID Mm: 50.8 | Max. Working Pressure Psi: 100 | Max. Working Pressure MPa: 0.7 | Min. Bend Radius Inch: 6 | Min. Bend Radius Mm.: 152 | WIRE: Textile with Helical | APPLICATIONS: For low pressure, high temperature return line or suction line for petrolium, oils and water based hydraulic fluids. Vaccume rating 25 in Hg. | SIZE: 3/4 in - 4 in | PRESSURE: 300 - 35
3P-6141: HOSE A
Hose: 100R4-32 | Hose Size ID Inch: 2 | Hose Size ID Mm: 50.8 | Max. Working Pressure Psi: 100 | Max. Working Pressure MPa: 0.7 | Min. Bend Radius Inch: 6 | Min. Bend Radius Mm.: 152 | WIRE: Textile with Helical | APPLICATIONS: For low pressure, high temperature return line or suction line for petrolium, oils and water based hydraulic fluids. Vaccume rating 25 in Hg. | SIZE: 3/4 in - 4 in | PRESSURE: 300 - 35
2G-4479: HOSE A
Hose: 100R4-32 | Hose Size ID Inch: 2 | Hose Size ID Mm: 50.8 | Max. Working Pressure Psi: 100 | Max. Working Pressure MPa: 0.7 | Min. Bend Radius Inch: 6 | Min. Bend Radius Mm.: 152 | WIRE: Textile with Helical | APPLICATIONS: For low pressure, high temperature return line or suction line for petrolium, oils and water based hydraulic fluids. Vaccume rating 25 in Hg. | SIZE: 3/4 in - 4 in | PRESSURE: 300 - 35

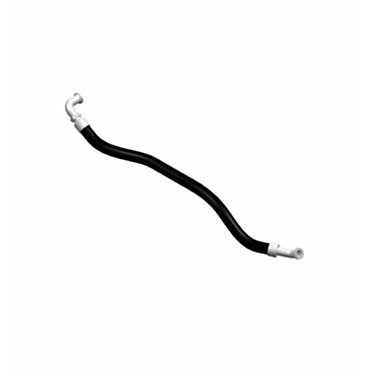

124-9318: Hose Assembly
Hose: 100R4-32 | Hose Size ID Inch: 2 | Hose Size ID Mm: 50.8 | Max. Working Pressure Psi: 100 | Max. Working Pressure MPa: 0.7 | Min. Bend Radius Inch: 6 | Min. Bend Radius Mm.: 152 | WIRE: Textile with Helical | APPLICATIONS: For low pressure, high temperature return line or suction line for petrolium, oils and water based hydraulic fluids. Vaccume rating 25 in Hg. | SIZE: 3/4 in - 4 in | PRESSURE: 300 - 35

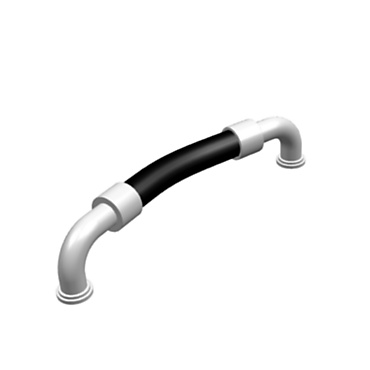

7D-4086: HOSE A
Hose: 100R4-32 | Hose Size ID Inch: 2 | Hose Size ID Mm: 50.8 | Max. Working Pressure Psi: 100 | Max. Working Pressure MPa: 0.7 | Min. Bend Radius Inch: 6 | Min. Bend Radius Mm.: 152 | WIRE: Textile with Helical | APPLICATIONS: For low pressure, high temperature return line or suction line for petrolium, oils and water based hydraulic fluids. Vaccume rating 25 in Hg. | SIZE: 3/4 in - 4 in | PRESSURE: 300 - 35
